JELDATA3 Operation Manual

8. Setup

8.3 Baud rate

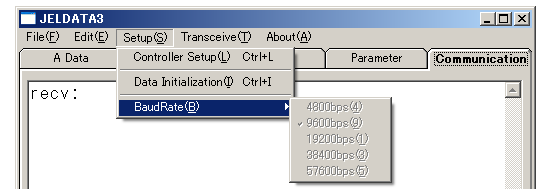

(Figure: 8-5)

It is for setting a communication baud rate. (Figure: 8-5)
The baud rate (selectable): 4800 bps, 9600 bps (standard),
19200 bps, 38400 bps, and 57600 bps

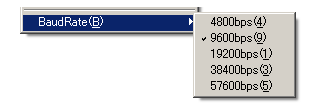

Make sure to close the port before changing the setting. (Figure: 8-6)
(Figure: 8-6)

! Caution It is not necessary to change the communication baud rate. Only if the baud rate on the controller is changed, it is necessary to change this setting.
! Caution The communication cannot be executed if the baud rate setting is different from the setting on the controller.
